Winder-G ABS cap frp membrane housings-economy series
Model: g80S300-X(ABS)
Port Type: only side port available
Burst test: 3-4 times of operating/design pressure

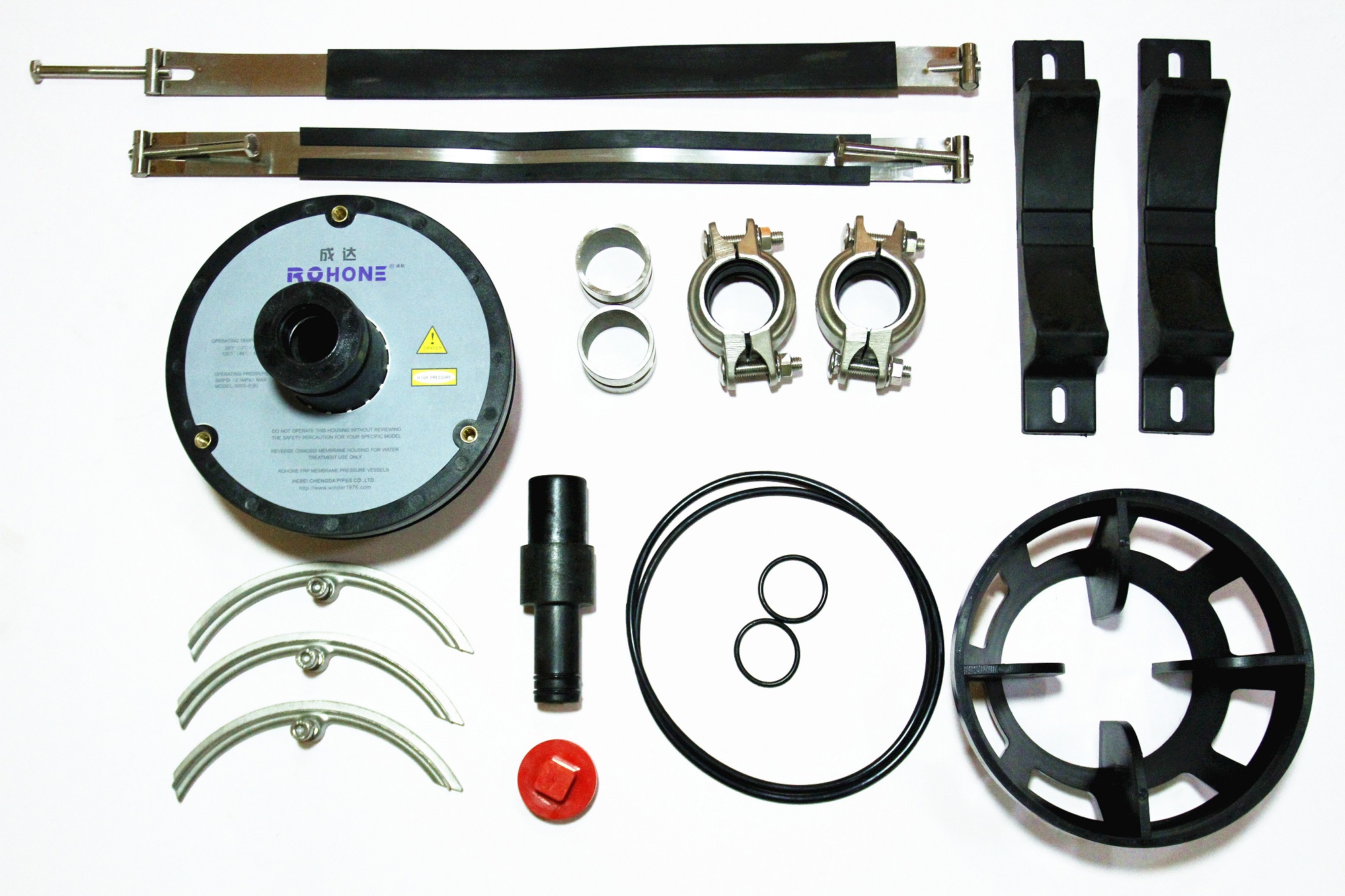

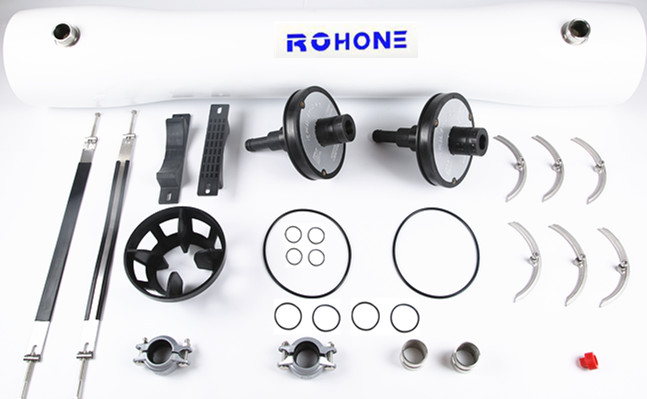

Couplings: with couplings
OEM available
Hot sell in home market
Datasheet Rhone-ABS Cap frp membrane housings-HBCDHM.pdf

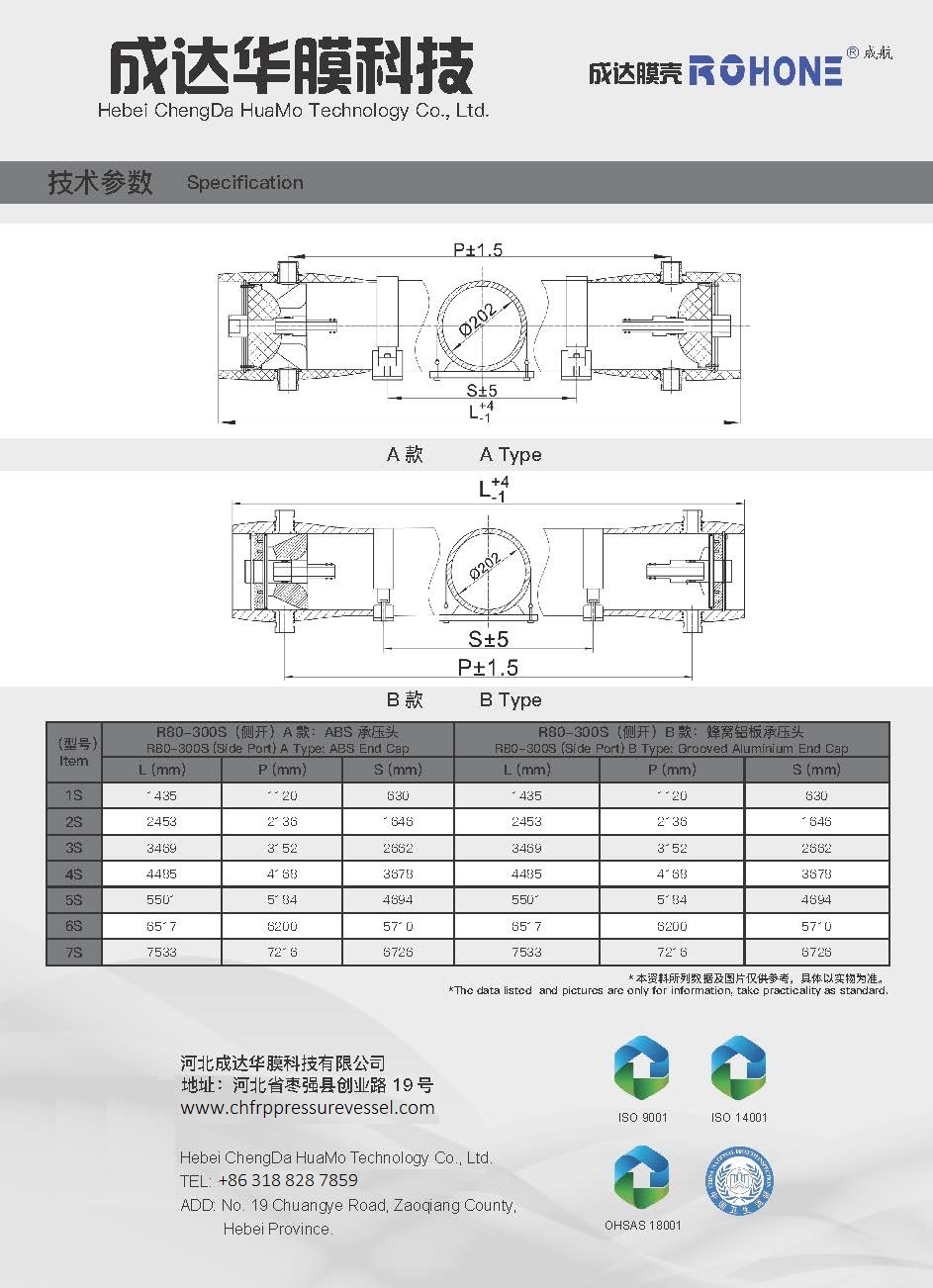

Drawing
Drawing R80S300S-ABS cap-HBCDHM.pdf
Drawing R80S450S-ABS cap-HBCDHM.pdf

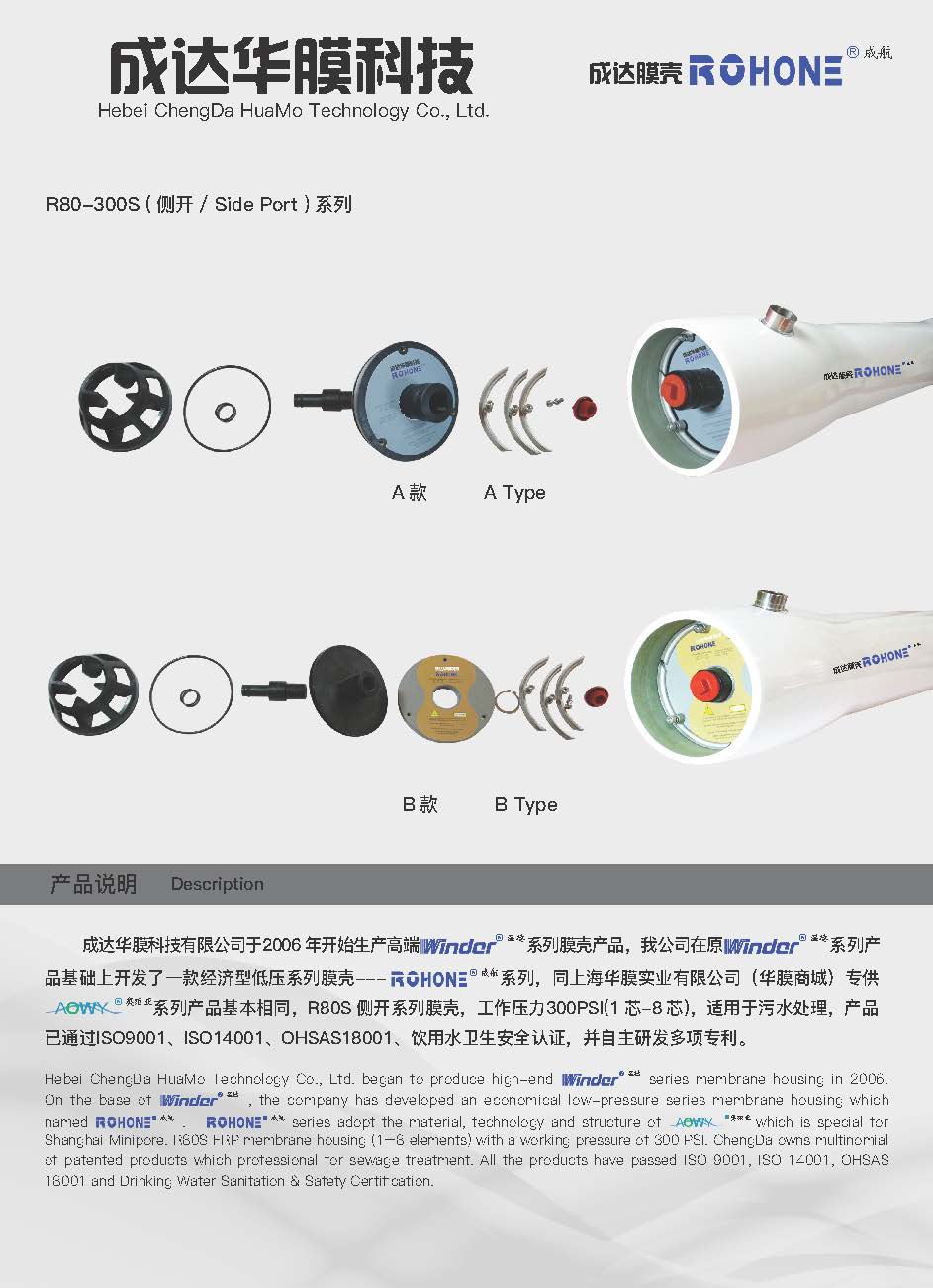

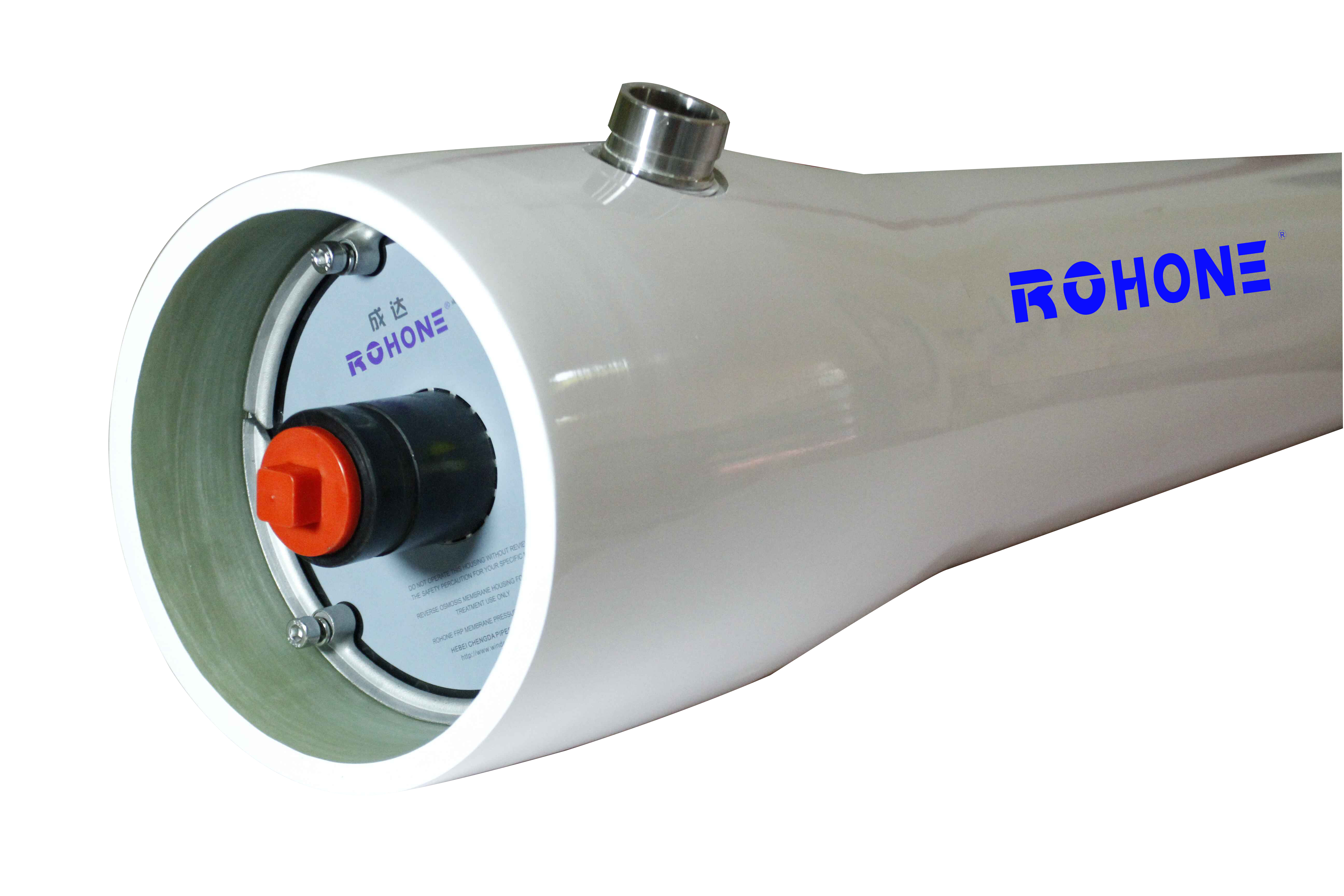

Winder G -ABS cap frp membrane housings
Side Entry Design
Available in 300 psi pressure rating only!
Accommodates standard make 8" Membrane Element
Element length: 40” x (1-8)
Applicable to: DOW、HYDRANAUTICS、OSMONICS、KOCH、TORAY、CSM、VONTRON、BDX,etc.
Standard: ISO9001, ISO14001, UL/NSF
Key Features:
Operating Temp Range: -10°C ---49°C
Internal permeate port not to exceed 125PSI(0.88MPa)
Operating pH Range: 3 – 11
Cleaning pH Range: 2 – 12 (less than 30 minutes)
Mirror inner wall and brightly surface.
Multi-ports option
White color is as standard. Customized colors are also available.
ASME un-coded economy series for saving low pressure ro system cost
Quality Assurance
Hydro-static Leakage Test Pressure:
Standard:
100% test, not sampling
— 100,000 times cycle test
— Burst test with 3-4 times of its operating pressure
— 100% QA test with 1.1x design hydraulic pressure.
ASME: 1.1x Design Pressure
— 100% QA inspection and cleaning before final
packaging and delivery to customers.
— Submitted for NSF standard 61
Applications:

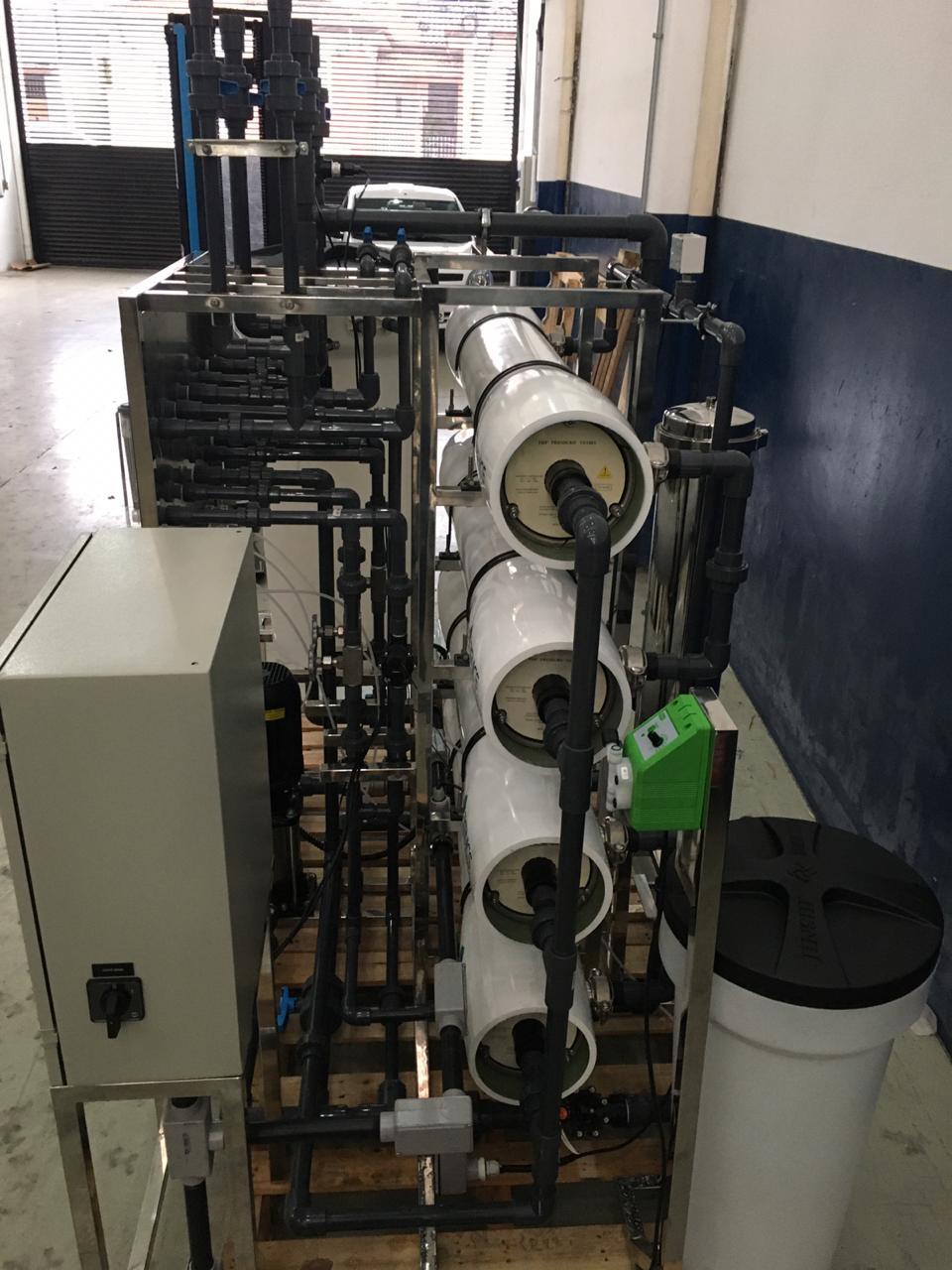

Rohone ABS FRP membrane housing pressure vessels are widely used for low pressure 300Psi ro systems in industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.
Notice:
Please operate in accordance with User Guide!
All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
