FRP MEMBRANE HOUSINGS W80S1000
FRP MEMBRANE HOUSINGS W80S1000FRP MEMBRANE HOUSINGS W80S1000

FRP MEMBRANE HOUSINGS W80S1000

Winder frp membrane housing pressure vessels

Side Entry Design

Available in 1000 psi pressure rating

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF

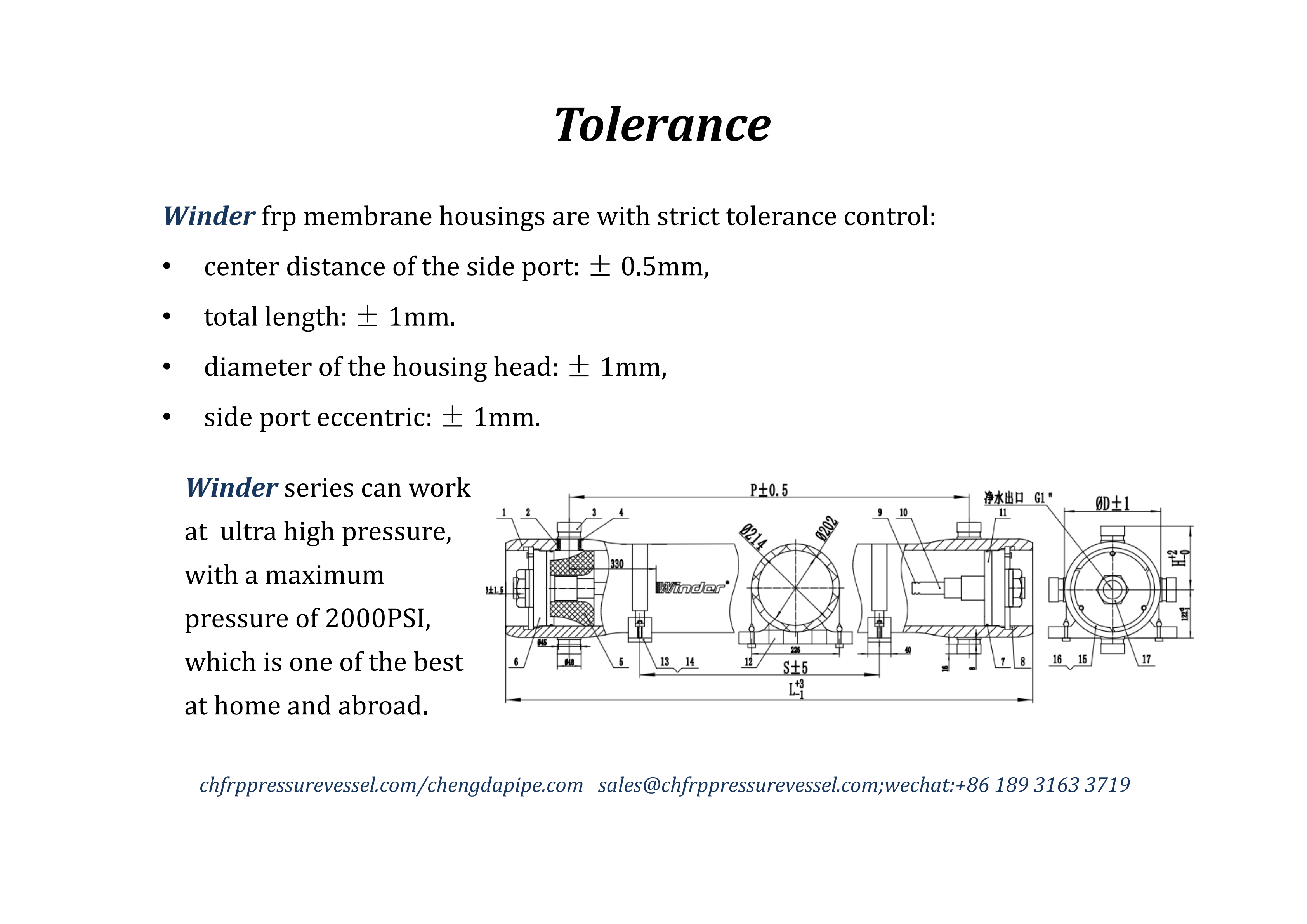

Drawing:

2020 DRAWING WINDER W80S1000-FRP MEMBRANE HOUSING-HBCDHM.pdf


Ordering Chart:

ordering chart 2020-Winder frp membrane housings-HBCDHM.pdf


Differences and Comparisons of Winder and Rohone series frp membrane housings:

200420 Differences and Comparisons of All Designs of FRP Membrane Housings by HBCDHM-Mary Hu.pdf


Inquire Now
Share:
Download

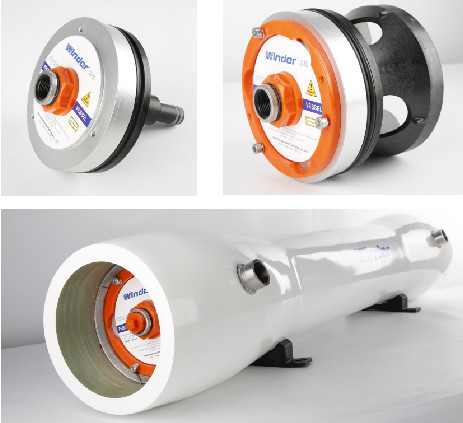

FRP MEMBRANE HOUSINGS W80S1000FRP MEMBRANE HOUSINGS W80S1000

Winder  frp membrane housing pressure vessels

for sea water desalination, high concentration waste water


Side Entry Design

Available in 1000 psi pressure rating

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF


multiports (side ports, feed ports) available:2", 2.5", 3", please fill the attached ordering chart to clarify the ports position and size!


FRP MEMBRANE HOUSINGS W80S1000

Key Features:

Operating Temp Range: -10°C ---49°C

Internal permeate port not to exceed 125PSI (0.88 MPa)

Operating pH Range: 3 – 11

Cleaning pH Range: 2 – 12 (less than 30 minutes)

Mirror inner wall and brightly surface.

Multi-ports option

White color is as standard. Customized colors are also available.

ASME Code stamp available upon request


Workshop of processing of frp membrane housings:

FRP MEMBRANE HOUSINGS W80S1000

Quality Assurance

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cycle test

— Burst test with 6 times of its operating pressure

— 100% QA test with 1.5x design hydraulic pressure.

ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61

FRP MEMBRANE HOUSINGS W80S1000

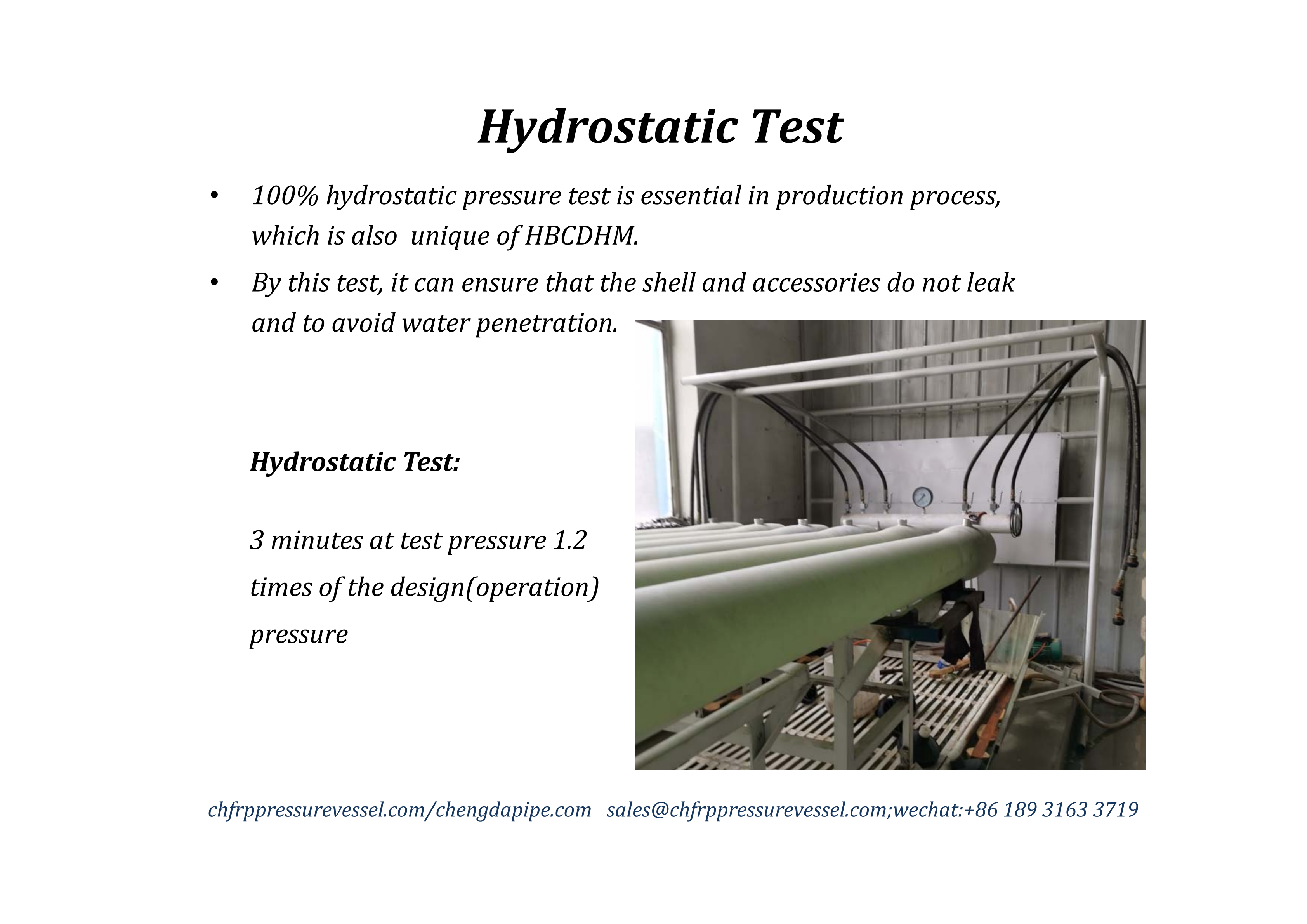

100% hydrostatic leakage test 1.2 times of operation pressure:

FRP MEMBRANE HOUSINGS W80S1000

Applications:

Winder FRP membrane housing pressure vessels are widely used for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.

FRP MEMBRANE HOUSINGS W80S1000

Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
