FRP MEMBRANE HOUSINGS R80S450
FRP MEMBRANE HOUSINGS R80S450

G80S450 FRP MEMBRANE HOUSINGS

Side Entry Design

Design/Operation Pressure: 450Psi

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF

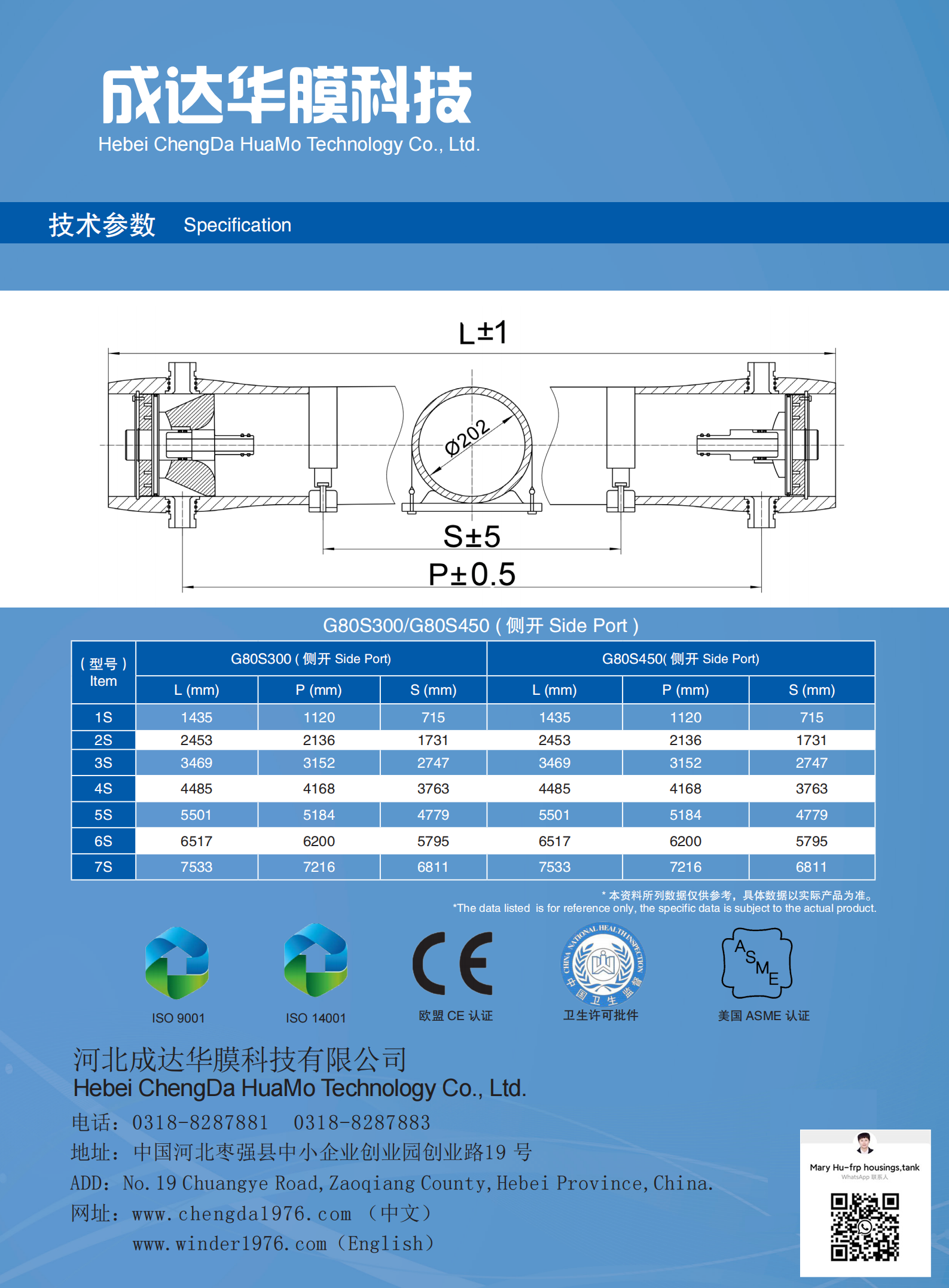

220913 Drawing of G80S450-Chenhon FRP RO membrane housings -Chengda water.pdf


Inquire Now
Share:
Download
FRP MEMBRANE HOUSINGS R80S450

Winder-G (Cenhon)aluminium cap frp membrane housing pressure vessels


Side Entry Design

Available in 300-450 psi pressure rating

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF

FRP MEMBRANE HOUSINGS G80S450

Key Features:

Operating Temp Range: -10°C ---49°C

Internal permeate port not to exceed 125PSI(0.88MPa)

Operating pH Range: 3 – 11

Cleaning pH Range: 2 – 12 (less than 30 minutes)

Mirror inner wall and brightly surface.

Multi-ports option

White color is as standard. Customized colors are also available.

ASME un-Coded series for saving cost of ro systems.


Quality Assurance

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cycle test

— Burst test with 4 times of its operating pressure

— 100% QA test with 1.3x design hydraulic pressure.

 ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61


Applications:

Winder-G FRP membrane housing pressure vessels are widely used for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.


Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
