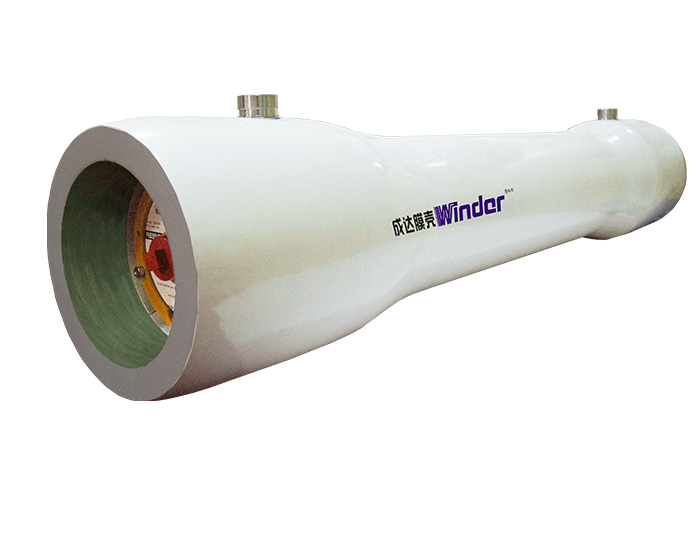

FRP MEMBRANE HOUSINGS W80S600
FRP MEMBRANE HOUSINGS W80S600

FRP MEMBRANE HOUSINGS W80S600

Side Entry Design

Available in 600 psi pressure rating

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF

Inquire Now
Share:
Download
FRP MEMBRANE HOUSINGS W80S600

Winder frp membrane housing pressure vessels


Side Entry Design

Available in 600 psi pressure rating

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF


Key Features:

Operating Temp Range: -10°C ---49°C

Internal permeate port not to exceed 125PSI(0.88 MPa)

Operating pH Range: 3 – 11

Cleaning pH Range: 2 – 12 (less than 30 minutes)

Mirror inner wall and brightly surface.

Multi-ports option

White color is as standard. Customized colors are also available.

ASME Code stamp available upon request


Quality Assurance:

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cycle test

— Burst test with 6 times of its operating pressure

— 100% QA test with 1.5x design hydraulic pressure.

ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61


Applications:

Winder FRP membrane housing pressure vessels are widely used for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.


Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.


2019 DRAWING WINDER W80S600-MARY -HBCDHM.pdf
