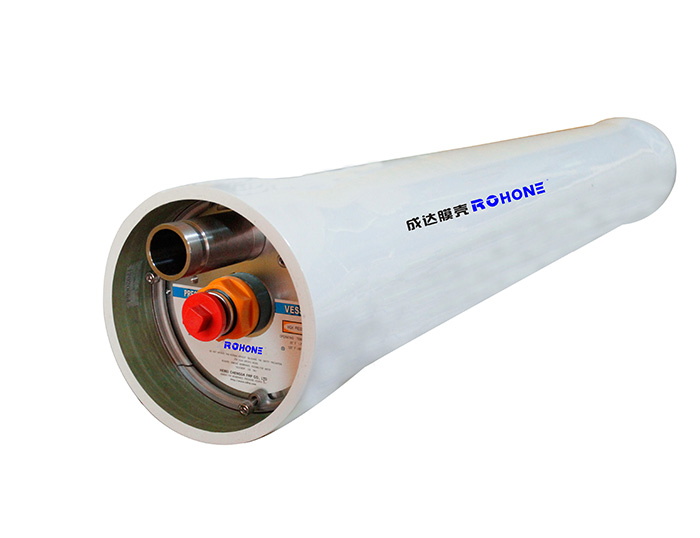

FRP MEMBRANE HOUSINGS R80E600
FRP MEMBRANE HOUSINGS R80E600

FRP MEMBRANE HOUSINGS R80E600

Rohone® frp membrane housing pressure vessels

End Entry Design

●Available in 450psi, 600psi pressure rating

●Accommodates standard make 8" Membrane Element

Inquire Now
Share:
Download
FRP MEMBRANE HOUSINGS R80E600

Rohone® frp membrane housing pressure vessels


End Entry Design

●Available in 450psi, 600psi pressure rating

●Accommodates standard make 8" Membrane Element


Key Features

●Operating Temp Range: -10°C ---49°C

●Test pressure

●Standard: 1.3x Design Pressure

●ASME: 1.1x Design Pressure

●Internal permeate port not to exceed 125PSI(0.88 MPa)

●Operating pH Range: 3 - 11

●Cleaning pH Range: 2 - 12 (less than 30 minutes)

●Mirror inner wall and brightly surface.

●White color is as standard. Customized colors are also available.

●ASME Code stamp available upon request

●Please operate in accordance with User Guide


Quality Assurance

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cycle test

— Burst test with 4 times of its operating pressure

— 100% QA test with 1.5x design hydraulic pressure.

ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61


Applications:

Rohone® FRP membrane housing pressure vessels are widely used for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.


Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
