General purpose: pre-filtration of reverse osmosis system, purification treatment of various water;
General industry: a variety of liquids, condensate, cooling water, wastewater treatment, etc;
Food and beverage industry: a variety of liquids;
Petrochemical industry: various solvents, frozen water, salt water power supply water, condensate water, cooling water;
Maximum flow rate of a single filter element is 30m3/h;
Filter system can be mounted vertically or horizontally to save space;
Double-sided V-shaped rubber ring makes the sealing better and more effective, easy to replace the filter element, and effectively avoid water leakage.
High Flow Folded Cartridge Filter, UPVC Bag Filter:
General purpose: pre-filtration of reverse osmosis system, purification treatment of various water;
General industry: a variety of liquids, condensate, cooling water, wastewater treatment, etc;
Food and beverage industry: a variety of liquids;
Petrochemical industry: various solvents, frozen water, salt water power supply water, condensate water, cooling water;
Maximum flow rate of a single filter element is 30m3/h;
Filter system can be mounted vertically or horizontally to save space;
Double-sided V-shaped rubber ring makes the sealing better and more effective, easy to replace the filter element, and effectively avoid water leakage.
Specifications of High Flow Folded Cartridge Filter:
| 型号 Model | 滤芯长度（mm） Filter Cartridge Length | 外壳总长（mm） Total Housing Length | 接口中心距（mm） Interface Center Distance | 精度（μm） Filtration Precision | 设计流量（m3/h） Design Flow Rate 5μm |
| WD10 | 280 | 640 | 415 | 0.1μm 1μm 5μm 10μm 15μm 20μm 50μm | 7.5 |
| WD20 | 530 | 890 | 665 | 15 | |
| WD30 | 773 | 1135 | 910 | 22.5 | |
| WD40 | 1040 | 1400 | 1175 | 30 |
Specifications of UPVC Bag Filter:
| 型号 Model | 滤袋型号 Bag Model | 滤袋尺寸 Bag Size | 外壳总长 Total Housing Length | 接口中心距 Interface Center Distance | 最大工作压力 Max pressure |
| WD-1DS | Bag 1# | 180*430mm | 740mm | 516mm | 0.7Mpa |
| WD-2DS | Bag 2# | 180*810mm | 1054mm | 830mm | 0.7Mpa |

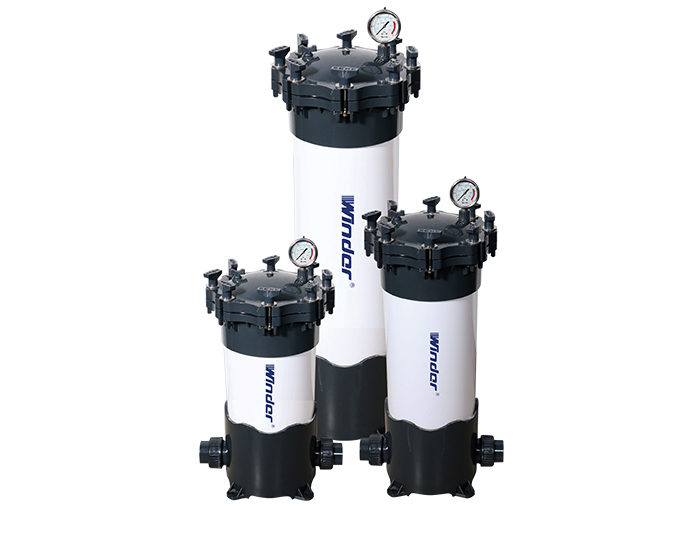

UPVC Cartridge Filter Housings, UPVC Precision Filter Housings:
The UPVC precision filter exhibits strong corrosion resistance and is suitable for applications where stainless steel and carbon steel are unsuitable, such as in food and chemical industries, industrial acid and alkali solutions, cooling tower circulation filtration, and ultrafiltration membrane feed water.
The filter distributes water evenly from the center of the bottom upwards to the periphery, minimizing impact resistance on the filter cartridge. The top of the filter is equipped with a vent valve to facilitate the expulsion of air from the filter.
Maximum Operating Temperature: 45℃. The top cover features pre-drilled holes for a vent valve and pressure gauge, with threaded dimensions of G1/4. A metric pressure gauge requires a separate adapter.
The filter is equipped with a PP cotton filter cartridge positioned internally, and the top cover does not require adjustment of the cartridge(avoiding traditional installation methods). The base and top pressure plates are designed as a single unit, facilitating easy and quick installation and compression of the filter cartridge.
Specifications of UPVC Cartridge Filter Housings:
| 型号 Model | 高度(mm) Height | 直径(mm) Diameter | 进出水口(mm) Inlet and Outlet | 滤芯尺寸（5芯） Filter Cartridge Length（5 elements） | 最大压力 Maximum Working Pressure | 材质 Material | ||
| WD225-10 | 455 | 225 | 48.5/50 | 10" | 0.6Mpa | UPVC | ||
| WD225-20 | 710 | 225 | 48.5/50 | 20" | 0.6Mpa | UPVC | ||
| WD225-30 | 965 | 225 | 48.5/50 | 30" | 0.6Mpa | UPVC | ||
| WD225-40 | 1220 | 225 | 48.5/50 | 40" | 0.6Mpa | UPVC | ||

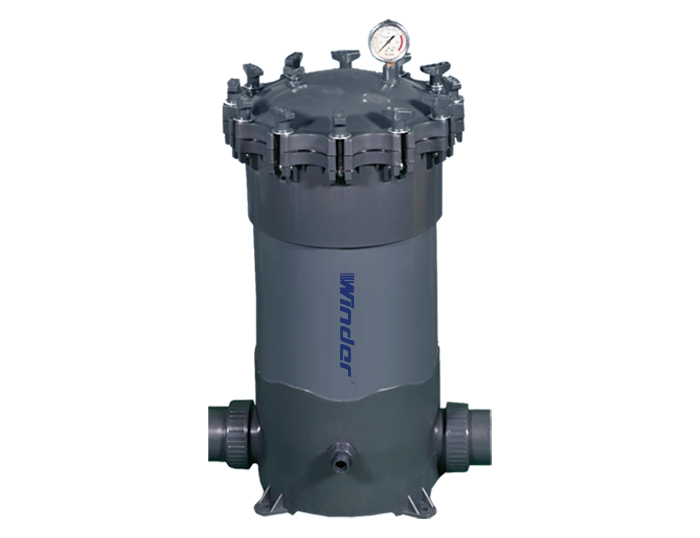

Specifications of UPVC Precision Filter Housings:
| 型号 Model | 高度(mm) Height | 直径(mm) Diameter | 进出水口(mm) Inlet and Outlet | 滤芯尺寸（9芯） Filter Cartridge Length（9 elements） | 最大压力 Maximum Working Pressure | 材质 Material | ||
| WD315-10 | 505 | 315 | 88.9/90 | 10" | 0.6Mpa | UPVC | ||
| WD315-20 | 760 | 315 | 88.9/90 | 20" | 0.6Mpa | UPVC | ||
| WD315-30 | 1000 | 315 | 88.9/90 | 30" | 0.6Mpa | UPVC | ||
| WD315-40 | 1270 | 315 | 88.9/90 | 40" | 0.6Mpa | UPVC | ||
