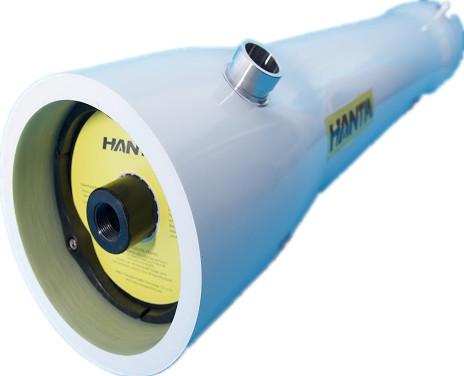

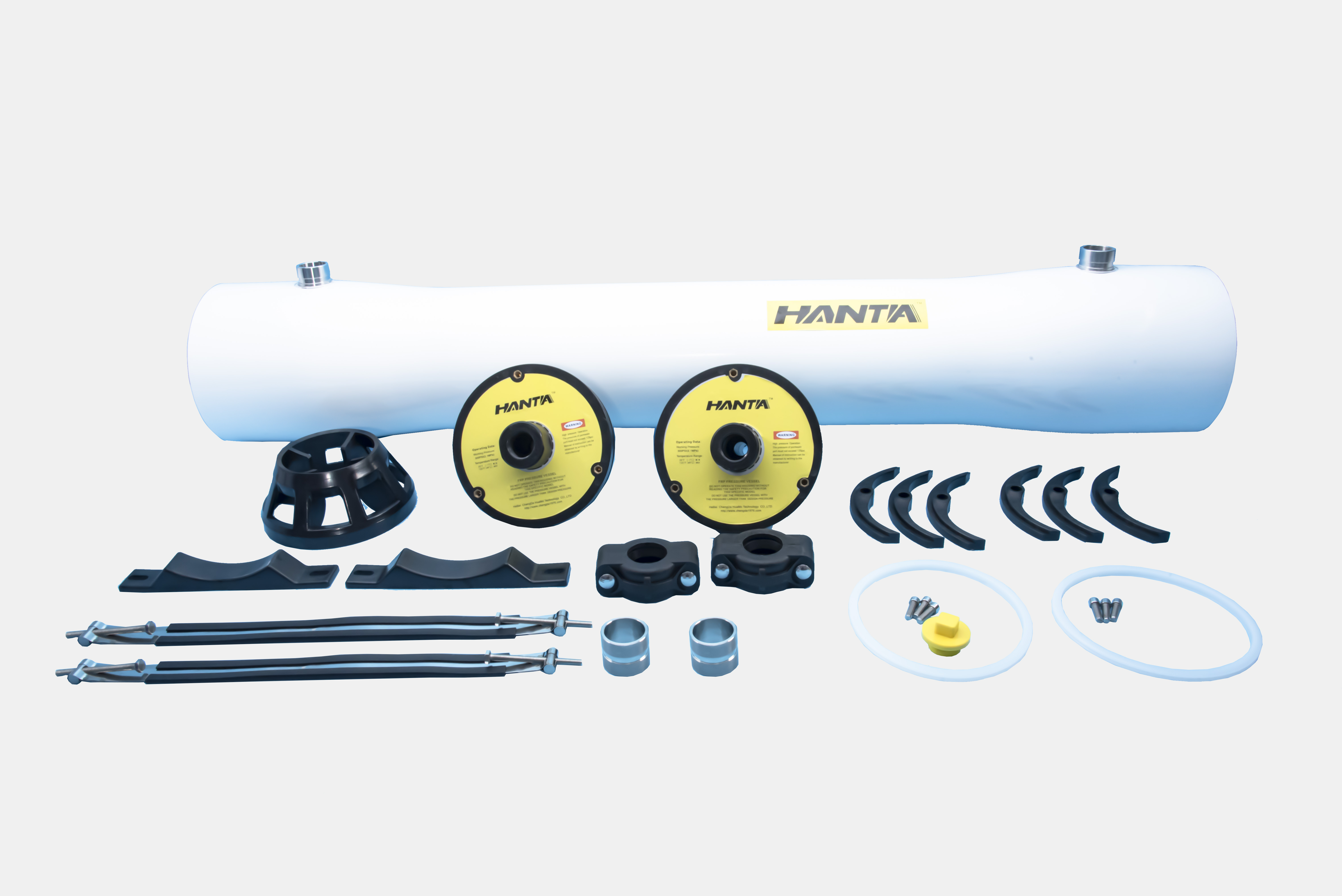

H80S300 FRP MEMBRANE HOUSINGS

Hanta frp membrane housing pressure vessels

Side Entry Design

Available in 300 psi pressure rating only!

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ISO9001, ISO14001, UL/NSF

220913 Drawing of 80S300-HANTIA FRP RO membrane housings-Chengda water.pdf

Key Features:

Operating Temp Range: -10°C ---49°C

Internal permeate port not to exceed 125PSI(0.88MPa)

Operating pH Range: 3 – 11

Cleaning pH Range: 2 – 12 (less than 30 minutes)

Mirror inner wall and brightly surface.

Multi-ports option

White color is as standard. Customized colors are also available.

ASME un-coded economy series for saving low pressure ro system cost

Quality Assurance

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cycle test

— Burst test with 3-4 times of its operating pressure

— 100% QA test with 1.1x design hydraulic pressure.

ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61

Applications:

Hanta membrane housing pressure vessels are widely used for low pressure 300Psi ro systems in industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.

Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
