Winder® FRP Water Softening Tanks, FRP Water Filter Tanks-150PSI
For Residential: 6" to 13"
FEATURES:
• For water softener filtration applications
• 5 year warranty for 8"-24" vessels
MATERIAL OF CONSTRUCTION:
• Inner liner high density polyethylene
• Threaded inlet glass filled polypropylene
OPERATING PARAMETERS:
• Maximum operating pressure: 150 psi (10.34 bars)
• Maximum operating temperature: 1200 F (48.80 C)
STRICT QUALITY COTROL (Q/A)
•Fatigue test: 250, 000 times. (standard 100, 000 times)
•Burst test: 4 times of its design pressure.
•Certification: NSF & ACS, ASME
CATALOGUE OF FRP FILTER /SOFTENER TANKS:
2020 Winder FRP tank brochure-HBCDHM.pdf
Drawings:
9 inch frp tanks-150psi-Winder-hbcdhm.pdf
10 inch frp tanks-150psi-Winder-hbcdhm.pdf
12 inch frp tanks-150psi-mary hu-hbcdhm.pdf
13 inch frp tanks-150psi-Winder-hbcdhm.pdf
FRP Water Softening, Filter Tanks- 150PSI-Winder® Series
For Residential: 6" to 13"
HEBEI CHENGDA HUAMO(HBCDHM in short) manufactures FRP tanks with design pressure 1.0Mpa(150Psi), 0.6Mpa(approx 100Psi) to meet various needs of the users.

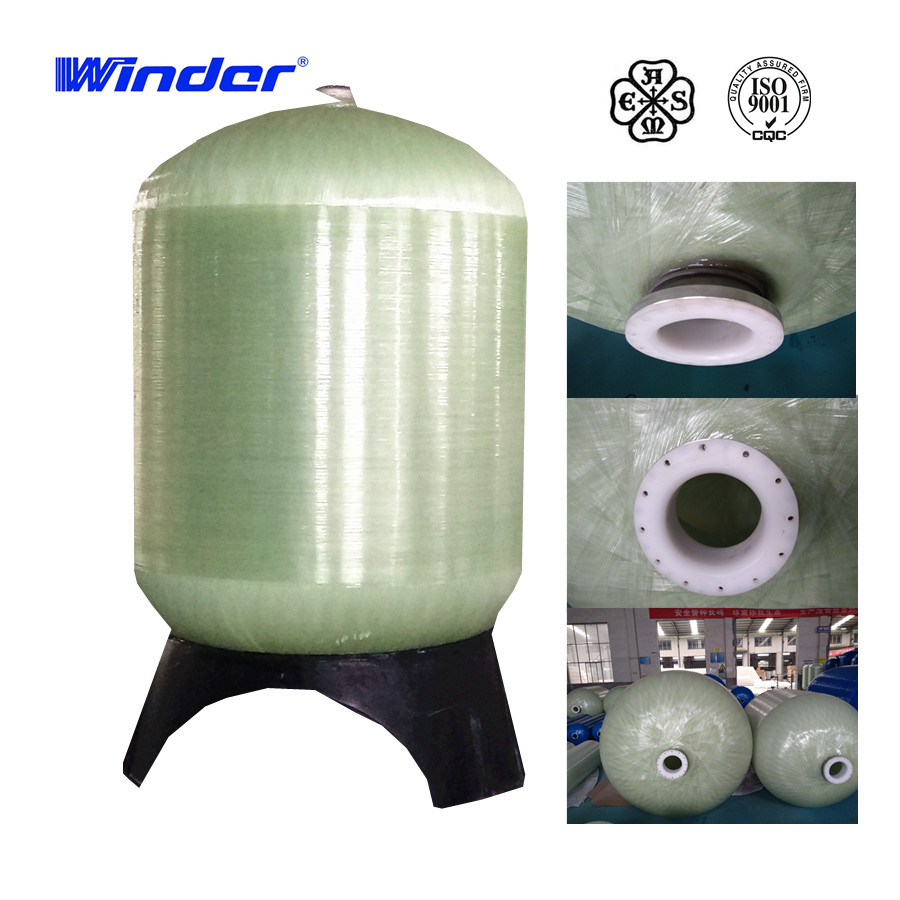

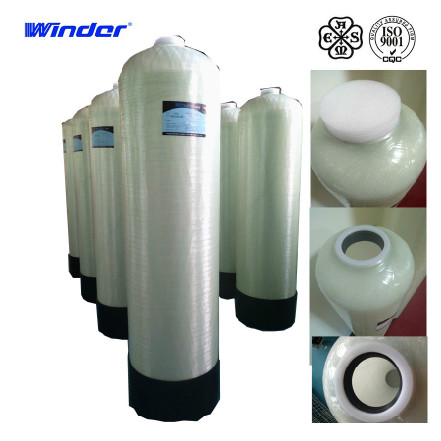

Structure and Materials of FRP Tanks

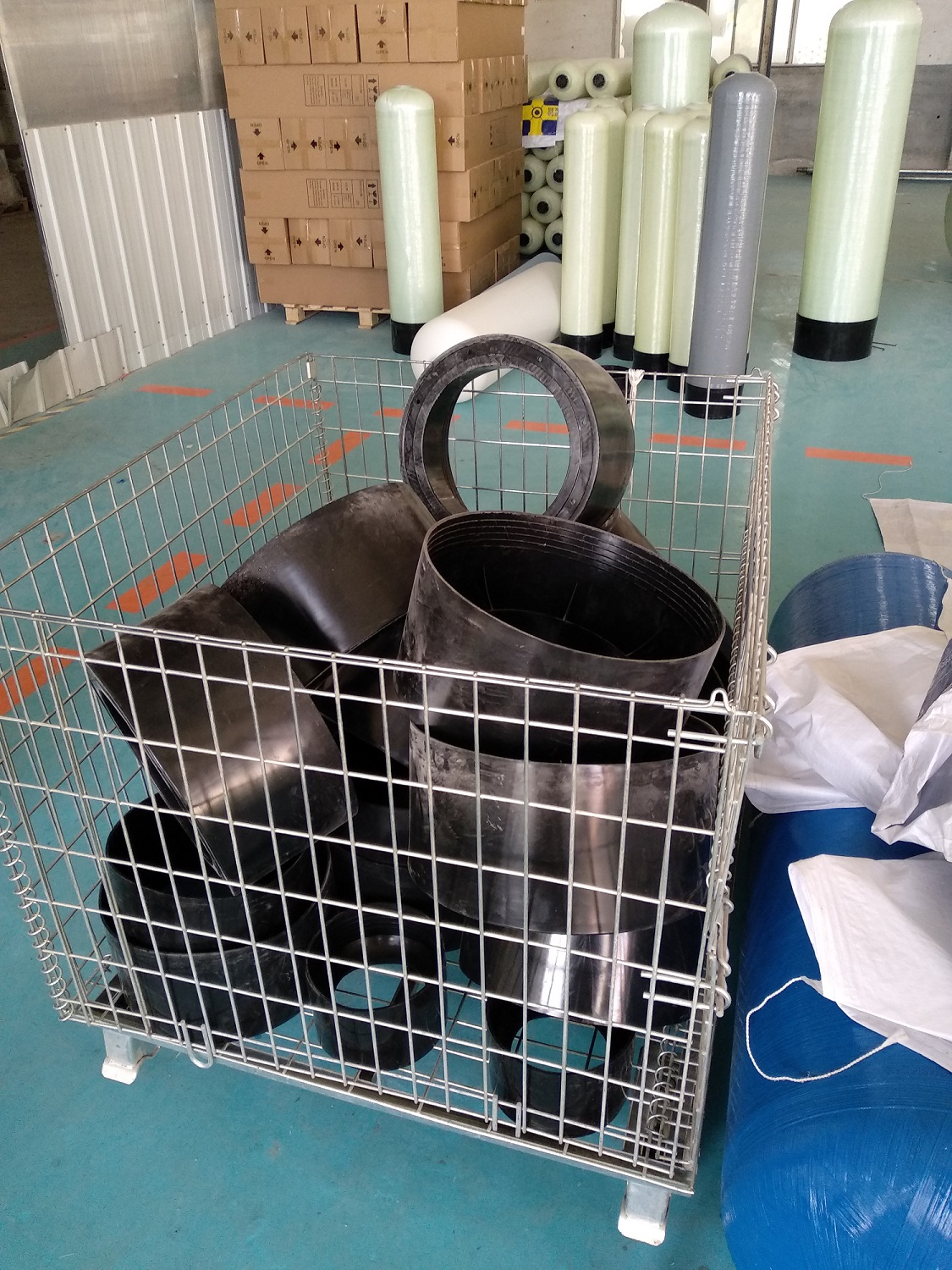

· Liner material: Rotation molding or Blowing One-piece seamless PE liner without leakage
· Outer Winding: High performance Epoxy resin + Fiberglass three-dimensional winding reinforcement.
· Opening: 2.5” and 4” precision injected model with reinforced plastic thread opening for “-36” frp filter tanks;
· Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36" to 72" diameter tanks
· Base Materials: FRP reinforced tripod base or reinforced PP round base
Application Conditions
· Working Pressure:150 psi(10.5 bar) for Winder series
0.6Mpa for Rohone and Aowy economy series.
· Working Temperature:1 °C - 49 °C (34°F - 120°F)
· Max. Vacuum: 127mmHg
· Lowest Environment Temperature:-27 °C (-17°F)
Strict Quality Control(Q/A)
•Fatigue test: 250, 000 times. (standard 100, 000 times)
•Burst test: 4 times of its design pressure.
•Certification: NSF & ACS, ASME
•Model: 0517-8079.
Rohone and Aowy FRP tank also is Chengda brand: 100 Psi. (Chengda is the FRP RO membrane housing and FRP tanks production base for Frotec - the largest water treatment trading company in China. AOWY brand only for Frotec.)
Sizes of FRP Tank
No. | Model | Nominal dimension | Opening | Volume | Base | Dimension | |||||
Top | Bottom | litre | Gallon | A (mm) | B (mm) | C (mm) | D (mm) | ||||
1 | 06×17 | 150*450 | 2.5"-8NPSM | / | 6.7 | 1.8 | Standard | 437 | Φ161 | / | Φ155 |
2 | 06×35 | 150*890 | 2.5"-8NPSM | / | 15 | 4.0 | Standard | 896 | Φ161 | / | Φ155 |
3 | 07×13 | 180*330 | 2.5"-8NPSM | / | 6.3 | 1.7 | Standard | 335 | Φ188 | / | Φ180 |
4 | 07×17 | 180*432 | 2.5"-8NPSM | / | 8.6 | 2.3 | Standard | 437 | Φ188 | / | Φ180 |
8 | 07×35 | 180*890 | 2.5"-8NPSM | / | 20.1 | 5.3 | Standard | 895 | Φ188 | / | Φ180 |
9 | 07×44 | 180*1110 | 2.5"-8NPSM | / | 24.5 | 6.5 | Standard | 1125 | Φ188 | / | Φ180 |
10 | 08×13 | 200*330 | 2.5"-8NPSM | / | 8.5 | 2.2 | Standard | 335 | Φ216 | / | Φ207 |
11 | 08×17 | 200*450 | 2.5"-8NPSM | / | 10.9 | 2.9 | Standard | 437 | Φ216 | / | Φ207 |
12 | 08×24 | 200*610 | 2.5"-8NPSM | / | 15.9 | 4.2 | Standard | 616 | Φ216 | / | Φ207 |
13 | 08×35 | 200*890 | 2.5"-8NPSM | / | 25 | 6.6 | Standard | 895 | Φ216 | / | Φ207 |
14 | 08×44 | 200*1100 | 2.5"-8NPSM | / | 32.6 | 8.6 | Standard | 1125 | Φ216 | / | Φ207 |
15 | 09×17 | 230*432 | 2.5"-8NPSM | / | 13.8 | 3.6 | Standard | 437 | Φ240 | / | Φ231 |
16 | 09×35 | 230*890 | 2.5"-8NPSM | / | 32.1 | 8.5 | Standard | 895 | Φ240 | / | Φ232 |
17 | 09×42 | 230*1068 | 2.5"-8NPSM | / | 38.4 | 10.1 | Standard | 1073 | Φ240 | / | Φ233 |
18 | 09×48 | 230*1220 | 2.5"-8NPSM | / | 44.3 | 11.7 | Standard | 1225 | Φ240 | / | Φ231 |
19 | 10×17 | 250*450 | 2.5"-8NPSM | / | 16.7 | 4.4 | Standard | 437 | Φ266 | / | Φ258 |
20 | 10×19 | 250*484 | 2.5"-8NPSM | / | 19.3 | 5.1 | Standard | 488 | Φ266 | / | Φ258 |
21 | 10×24 | 250*610 | 2.5"-8NPSM | / | 25.2 | 6.7 | Standard | 616 | Φ266 | / | Φ258 |
22 | 10×35 | 250*890 | 2.5"-8NPSM | / | 39.4 | 10.4 | Standard | 895 | Φ266 | / | Φ258 |
23 | 10×44 | 250*1119 | 2.5"-8NPSM | / | 51 | 13.5 | Standard | 1124 | Φ266 | / | Φ258 |
24 | 10×54 | 250*1400 | 2.5"-8NPSM | / | 63.5 | 16.8 | Standard | 1378 | Φ266 | / | Φ258 |
25 | 12×48 | 300*1220 | 2.5"-8NPSM | / | 78.9 | 20.8 | Standard | 1230 | Φ318 | / | Φ307 |
26 | 12×52 | 300*1400 | 2.5"-8NPSM | / | 85.9 | 22.7 | Standard | 1330 | Φ318 | / | Φ307 |
27 | 12×65 | 300*1650 | 2.5"-8NPSM | / | 109.1 | 28.8 | Standard | 1660 | Φ318 | / | Φ307 |
28 | 13×44 | 330*1117 | 2.5"-8NPSM | / | 83.1 | 22.0 | Standard | 1127 | Φ343 | / | Φ334 |
29 | 13×54 | 336*1382 | 2.5"-8NPSM | / | 104.3 | 27.6 | Standard | 1380 | Φ343 | / | Φ334 |
30 | 14×52 | 350*1400 | 2.5"-8NPSM | / | 115.4 | 30.5 | Standard | 1325 | Φ369 | / | Φ359 |
31 | 14×52 | 350*1320 | 4"-8UN | / | 115.4 | 30.5 | Standard | 1325 | Φ369 | / | Φ359 |
32 | 14×65 | 350*1650 | 2.5"-8NPSM | / | 147 | 38.8 | Standard | 1655 | Φ369 | / | Φ359 |
33 | 14×65 | 350*1650 | 4"-8UN | / | 147 | 38.8 | Standard | 1655 | Φ369 | / | Φ359 |
34 | 14×65 | 350*1650 | 4"-8UN | 4"-8UN | 147 | 38.8 | Tripod | 1870 | Φ370 | 220 | Φ359 |
35 | 16×52 | 400*1320 | 2.5"-8NPSM | / | 150 | 39.6 | Standard | 1325 | Φ420 | / | Φ409 |
36 | 16×52 | 400*1320 | 4"-8UN | / | 150 | 39.6 | Standard | 1325 | Φ420 | / | Φ409 |
37 | 16×65 | 400*1650 | 2.5"-8NPSM | / | 191.3 | 50.5 | Standard | 1655 | Φ420 | / | Φ409 |
38 | 16×65 | 400*1650 | 4"-8UN | / | 191.3 | 50.5 | Standard | 1655 | Φ420 | / | Φ409 |
39 | 16×65 | 400*1650 | 4"-8UN | 4"-8UN | 191.3 | 50.5 | Tripod | 1870 | Φ420 | 220 | Φ409 |
16×75 | 400*1900 | ||||||||||
40 | 18×36 | 450*914 | 4"-8UN | / | 124.9 | 33.0 | Round | 934 | Φ451 | / | Φ462 |
41 | 18×53 | 450*1346 | 4"-8UN | / | 193.6 | 51.1 | Round | 1366 | Φ451 | / | Φ462 |
42 | 18×65 | 450*1668 | 4"-8UN | / | 242.3 | 64.0 | Round | 1670 | Φ451 | / | Φ462 |
43 | 18×65 | 450*1931 | 4"-8UN | 4"-8UN | 242.3 | 64.0 | Tripod | 1873 | Φ480 | 223 | Φ462 |
44 | 20×69 | 500*1750 | 4"-8UN | / | 310.4 | 82.0 | Round | 1772 | Φ523 | / | Φ513 |
45 | 20×69 | 500*1900 | 4"-8UN | 4"-8UN | 310.4 | 82.0 | Tripod | 1997 | Φ535 | 245 | Φ513 |
46 | 21×36 | 550*915 | 4"-8UN | / | 168.2 | 44.4 | Round | 935 | Φ532 | / | Φ539 |
47 | 21×53 | 543*1396 | 4"-8UN | / | 262.4 | 69.3 | Round | 1366 | Φ532 | / | Φ539 |
48 | 21×62 | 543*1670 | 4"-8UN | / | 312.7 | 82.6 | Round | 1595 | Φ532 | / | Φ539 |
49 | 21×62 | 550*1670 | 4"-8UN | 4"-8UN | 312.7 | 82.6 | Tripod | 1823 | Φ555 | 248 | Φ539 |
50 | 24×65 | 600*1900 | 4"-8UN | / | 426.5 | 112.7 | Round | 1670 | Φ612 | / | Φ613 |
51 | 24×65 | 600*1900 | 4"-8UN | 4"-8UN | 426.5 | 112.7 | Tripod | 1898 | Φ610 | 248 | Φ613 |
52 | 24×72 | 600*2100 | 4"-8UN | / | 477.5 | 126.2 | Round | 1850 | Φ612 | / | Φ613 |
53 | 24×72 | 600*2100 | 4"-8UN | 4"-8UN | 477.5 | 126.2 | Tripod | 2080 | Φ610 | 248 | Φ613 |
54 | 30×65 | 750*1900 | 4"-8UN | / | 645.7 | 170.6 | Round | 1700 | Φ762 | / | Φ766 |
55 | 30×65 | 750*1900 | 4"-8UN | 4"-8UN | 645.7 | 170.6 | Tripod | 1880 | Φ762 | 228 | Φ766 |
56 | 30×72 | 750*2100 | 4"-8UN | / | 725.9 | 191.8 | Round | 1880 | Φ762 | / | Φ766 |
57 | 30×72 | 750*2100 | 4"-8UN | 4"-8UN | 725.9 | 191.8 | Tripod | 2078 | Φ762 | 228 | Φ766 |
58 | 30×72 | 750*2100 | 6"-FLG | 6"-FLG | 736.2 | 194.5 | Tripod | 2245 | Φ815 | 265 | Φ770 |
59 | 36×65 | 900*1900 | 4"-8UN | / | 914.6 | 241.6 | Round | 1700 | Φ910 | / | Φ919 |
60 | 36×65 | 900*1900 | 4"-8UN | 4"-8UN | 914.6 | 241.6 | Tripod | 1879 | Φ900 | 228 | Φ919 |
61 | 36×72 | 900*2100 | 4"-8UN | / | 1030.2 | 272.2 | Round | 1880 | Φ910 | / | Φ919 |
62 | 36×72 | 900*2100 | 4"-8UN | 4"-8UN | 1030.2 | 272.2 | Tripod | 2058 | Φ900 | 228 | Φ919 |
63 | 36×72 | 900*2100 | 6"-FLG | 6"-FLG | 1045.2 | 276.1 | Tripod | 2240 | Φ920 | 257 | Φ920 |
64 | 40×65 | 1000*1900 | 4"-8UN | 4"-8UN | 1148.8 | 303.5 | Tripod | 1980 | Φ1010 | 329 | Φ1010 |
65 | 40×65 | 1000*1900 | 6"-FLG | 6"-FLG | 1139.9 | 301.2 | Tripod | 2060 | Φ1010 | 262 | Φ1010 |
66 | 40×79 | 1000*2200 | 4"-8UN | 4"-8UN | 1338.3 | 353.6 | Tripod | 2335 | Φ1010 | 329 | Φ1010 |
67 | 40×79 | 1000*2200 | 6"-FLG | 6"-FLG | 1328.4 | 351.0 | Tripod | 2418 | Φ1010 | 262 | Φ1010 |
68 | 42×72 | 1096*2409 | 6"-FLG | 6"-FLG | 1431.2 | 378.1 | Tripod | 2093 | Φ1070 | 263 | Φ1080 |
69 | 48×72 | 1200*2300 | 6"-FLG | 6"-FLG | 1786.2 | 471.9 | Tripod | 2121 | Φ1200 | 291 | Φ1220 |
70 | 60×79 | 1500*2400 | 6"-FLG | 6"-FLG | 3086.3 | 815.4 | Tripod | 2300 | Φ1500 | 294 | Φ1512 |
71 | 63×67 | 1600*1702 | 6"-FLG | 6"-FLG | 2629.8 | 694.8 | Tripod | 1996 | Φ1620 | 294 | Φ1604 |
72 | 63×86 | 1600*2600 | 6"-FLG | 6"-FLG | 3424.5 | 904.8 | Tripod | 2478 | Φ1620 | 294 | Φ1604 |
73 | 72×79 | 1800*2600 | 6"-FLG | 6"-FLG | 4819.4 | 1273.3 | Tripod | 2300 | Φ1800 | 294 | Φ1856 |
73 | 72×760.6MPa | 1800*2600 | 6"-FLG | 6"-FLG | 4819.4 | 1273.3 | Tripod | 2300 | Φ1800 | 294 | Φ1856 |
74 | 80×79 0.6MPa | 2000*2007 | 6"-FLG | 6"-FLG | 4819.4 | 1273.3 | Tripod | 2300 | Φ2000 | 294 | Φ2036 |
FEATURE
Chengda Winder, Rohone, and Aowy FRP softner tanks quality assurance: burst test with 4 times of its design pressure, and 250000 times cycle test.
1. HBCDHM FRP tanks (844-1665) use 600 TEX fiberglass, not 1200TEX fiberglass, with higher safety factor.
2. The base of HBCDHM FRP tank is made from pure raw material not recycled material, With better appearance, stronger toughness, and more environmentally friendly.
3. Key additives are imported from the US.
APPLICATION
HBCDHM FRP tanks are widely used for water softening equipment in food processing plants, hospitals, laundries, manufacturing plants, office campuses and restaurants, condominiums, boiler feedwater, car washes, institutions, municipal, multimedia filters, carbon filters, iron filters, calcite filters and specialty media filters.
All feed water and waste water treatment application, included multi-media filter and softener.
1) . Industrial Water Treatment with multi-layer media
2). Water Softening
3). Centralized Filtration System for high rise residential and commercial buildings such as residence , high rise office building, hotels and resorts.
4). Aquaculture, fish farming filtration system
5). Many other water filtration and treatment applications.
6). Widely used in factory, Enterprises, government, hotel, motel, restaurant, residence as storage facility.
7). Use it as equipment in drinking water treatment and fire water supply
Any questions, welcome email us sales@chfrppressurevessel.com!
CATALOGUE:
2020 Winder FRP tank brochure-HBCDHM.pdf
