1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE
1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USEFRP Water Softening, Filter Tanks-150PSI-Winder ® Series

FOR INDUSTRIAL: 30" to 63"


FEATURES:

• For water softener filtration applications

• 2 year warranty for 30"-63" vessels



MATERIAL OF CONSTRUCTION:

• Inner liner high density polyethylene

• Threaded inlet glass filled polypropylene



OPERATING PARAMETERS:

• Maximum  operating pressure: 150 psi (10.34 bars)

• Maximum  operating temperature: 1200 F (48.80 C)


Catalog:

2020 Arclion frp water tanks-HBCDHM.pdf


Drawings:

30”-6-6 150Psi-HBCDHM.pdf

36”-4-4 150Psi-HBCDHM.pdf

30”-4-4 150Psi-HBCDHM.pdf

36”-6-6 150Psi-HBCDHM.pdf

40”-4-4 150Psi-HBCDHM.pdf

40”-6-6 150Psi-HBCDHM.pdf

42”-6-6 150Psi-HBCDHM.pdf

48”-6-6 150Psi-HBCDHM.pdf

63”-6-6 150Psi-HBCDHM.pdf

60”-6-6 150Psi-HBCDHM.pdf

72”-6-6 150Psi-HBCDHM.pdf


Inquire Now
Share:
Download
1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USEFRP Water Softening, Filter Tanks-150PSI-Winder ® Series

FOR INDUSTRIAL: 30" to 63"

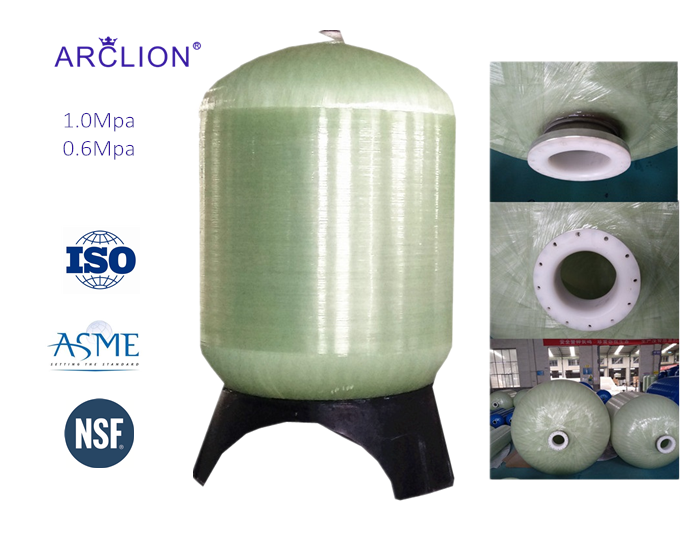

HEBEI CHENGDA HUAMO(HBCDHM in short) manufactures FRP tanks with design pressure 1.0Mpa(150Psi), 0.6Mpa(approx 100Psi) to meet various needs of the users.

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

Structure and Materials of FRP Tanks

•Liner material: Rotation molding or Blowing One-piece seamless PE liner

•Outer Winding: High performance Epoxy resin + Fiberglass three-dimensional winding reinforcement.

•Opening: 2.5" and 4" reinforced plastic thread; 6" alloy flange.

•Base Materials: FRP or reinforced PP


1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE


Application Conditions

• Working Pressure: 150 psi(10.5 bar) for Winder series

0.6Mpa for Rohone and Aowy economy series.

• Working Temperature: 1 °C - 49 °C (34°F - 120°F)

• Max. Vacuum: 127mmHg

• Lowest Environment Temperature: -27 °C (-17°F)


1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

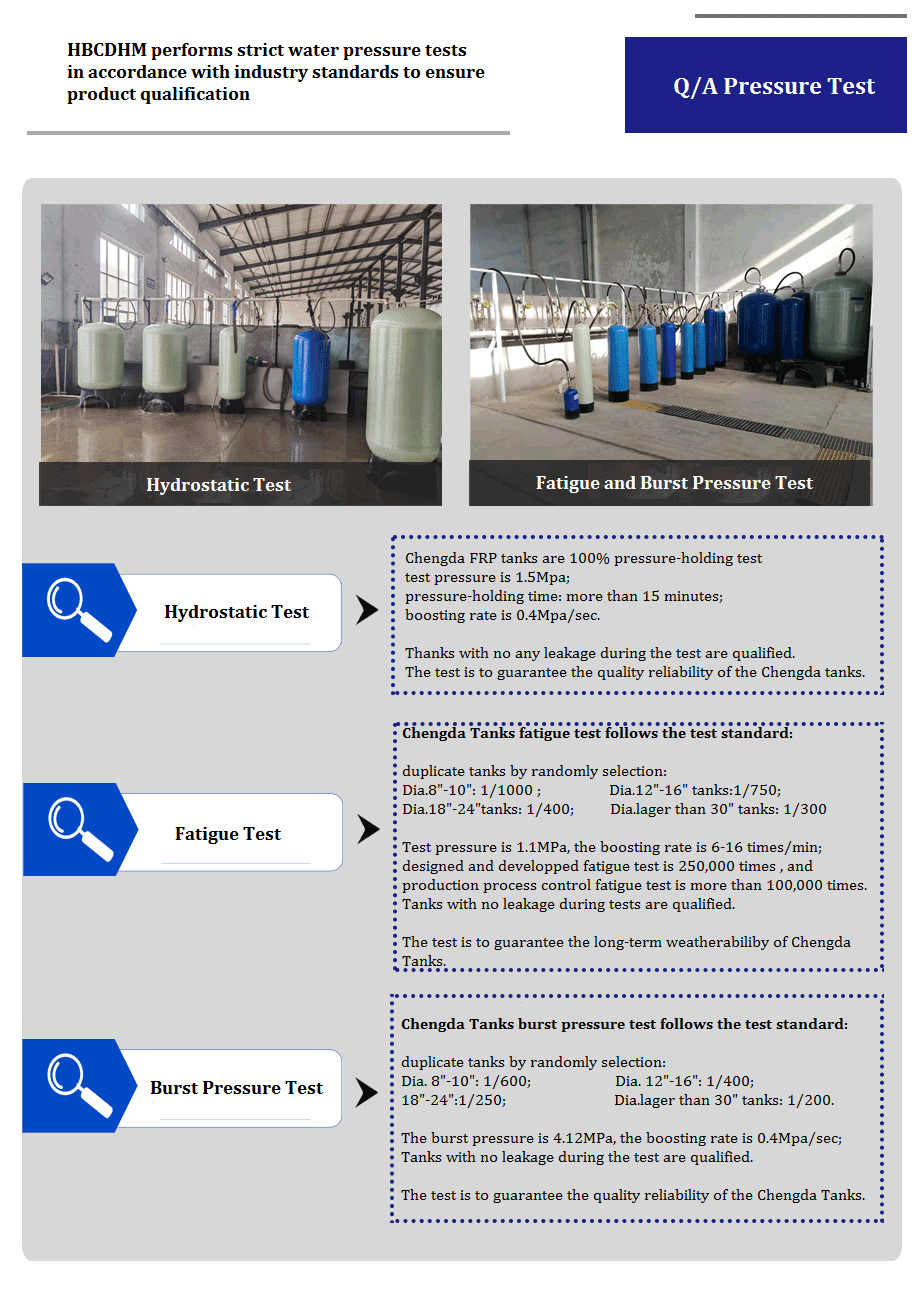

Strict Quality Control(Q/A)


•Fatigue test: 250, 000 times.(standard 100,000 times)

•Burst test: 4 times of its design pressure.

•Certification: NSF & ACS, ASME

•Model: 0517-8079.

Arclion FRP tank also has 100 Psi/0.6Mpa (Chengda is the FRP RO membrane housing and FRP tanks production base for Frotec - the largest water treatment trading company in China)

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

Specification of FRP Tank

No.ModelNominal dimensionOpeningVolumeBaseDimension
TopBottomlitreGallonA (mm)B (mm)C (mm)D (mm)
106×17150*4502.5"-8NPSM/6.71.8Standard437Φ161/Φ155
206×35150*8902.5"-8NPSM/154.0Standard896Φ161/Φ155
307×13180*3302.5"-8NPSM/6.31.7Standard335Φ188/Φ180
407×17180*4322.5"-8NPSM/8.62.3Standard437Φ188/Φ180
807×35180*8902.5"-8NPSM/20.15.3Standard895Φ188/Φ180
907×44180*11102.5"-8NPSM/24.56.5Standard1125Φ188/Φ180
1008×13200*3302.5"-8NPSM/8.52.2Standard335Φ216/Φ207
1108×17200*4502.5"-8NPSM/10.92.9Standard437Φ216/Φ207
1208×24200*6102.5"-8NPSM/15.94.2Standard616Φ216/Φ207
1308×35200*8902.5"-8NPSM/256.6Standard895Φ216/Φ207
1408×44200*11002.5"-8NPSM/32.68.6Standard1125Φ216/Φ207
1509×17230*4322.5"-8NPSM/13.83.6Standard437Φ240/Φ231
1609×35230*8902.5"-8NPSM/32.18.5Standard895Φ240/Φ232
1709×42230*10682.5"-8NPSM/38.410.1Standard1073Φ240/Φ233
1809×48230*12202.5"-8NPSM/44.311.7Standard1225Φ240/Φ231
1910×17250*4502.5"-8NPSM/16.74.4Standard437Φ266/Φ258
2010×19250*4842.5"-8NPSM/19.35.1Standard488Φ266/Φ258
2110×24250*6102.5"-8NPSM/25.26.7Standard616Φ266/Φ258
2210×35250*8902.5"-8NPSM/39.410.4Standard895Φ266/Φ258
2310×44250*11192.5"-8NPSM/5113.5Standard1124Φ266/Φ258
2410×54250*14002.5"-8NPSM/63.516.8Standard1378Φ266/Φ258
2512×48300*12202.5"-8NPSM/78.920.8Standard1230Φ318/Φ307
2612×52300*14002.5"-8NPSM/85.922.7Standard1330Φ318/Φ307
2712×65300*16502.5"-8NPSM/109.128.8Standard1660Φ318/Φ307
2813×44330*11172.5"-8NPSM/83.122.0Standard1127Φ343/Φ334
2913×54336*13822.5"-8NPSM/104.327.6Standard1380Φ343/Φ334
3014×52350*14002.5"-8NPSM/115.430.5Standard1325Φ369/Φ359
3114×52350*13204"-8UN/115.430.5Standard1325Φ369/Φ359
3214×65350*16502.5"-8NPSM/14738.8Standard1655Φ369/Φ359
3314×65350*16504"-8UN/14738.8Standard1655Φ369/Φ359
3414×65350*16504"-8UN4"-8UN14738.8Tripod1870Φ370220Φ359
3516×52400*13202.5"-8NPSM/15039.6Standard1325Φ420/Φ409
3616×52400*13204"-8UN/15039.6Standard1325Φ420/Φ409
3716×65400*16502.5"-8NPSM/191.350.5Standard1655Φ420/Φ409
3816×65400*16504"-8UN/191.350.5Standard1655Φ420/Φ409
3916×65400*16504"-8UN4"-8UN191.350.5Tripod1870Φ420220Φ409

16×75400*1900








4018×36450*9144"-8UN/124.933.0Round934Φ451/Φ462
4118×53450*13464"-8UN/193.651.1Round1366Φ451/Φ462
4218×65450*16684"-8UN/242.364.0Round1670Φ451/Φ462
4318×65450*19314"-8UN4"-8UN242.364.0Tripod1873Φ480223Φ462
4420×69500*17504"-8UN/310.482.0Round1772Φ523/Φ513
4520×69500*19004"-8UN4"-8UN310.482.0Tripod1997Φ535245Φ513
4621×36550*9154"-8UN/168.244.4Round935Φ532/Φ539
4721×53543*13964"-8UN/262.469.3Round1366Φ532/Φ539
4821×62543*16704"-8UN/312.782.6Round1595Φ532/Φ539
4921×62550*16704"-8UN4"-8UN312.782.6Tripod1823Φ555248Φ539
5024×65600*19004"-8UN/426.5112.7Round1670Φ612/Φ613
5124×65600*19004"-8UN4"-8UN426.5112.7Tripod1898Φ610248Φ613
5224×72600*21004"-8UN/477.5126.2Round1850Φ612/Φ613
5324×72600*21004"-8UN4"-8UN477.5126.2Tripod2080Φ610248Φ613
5430×65750*19004"-8UN/645.7170.6Round1700Φ762/Φ766
5530×65750*19004"-8UN4"-8UN645.7170.6Tripod1880Φ762228Φ766
5630×72750*21004"-8UN/725.9191.8Round1880Φ762/Φ766
5730×72750*21004"-8UN4"-8UN725.9191.8Tripod2078Φ762228Φ766
5830×72750*21006"-FLG6"-FLG736.2194.5Tripod2245Φ815265Φ770
5936×65900*19004"-8UN/914.6241.6Round1700Φ910/Φ919
6036×65900*19004"-8UN4"-8UN914.6241.6Tripod1879Φ900228Φ919
6136×72900*21004"-8UN/1030.2272.2Round1880Φ910/Φ919
6236×72900*21004"-8UN4"-8UN1030.2272.2Tripod2058Φ900228Φ919
6336×72900*21006"-FLG6"-FLG1045.2276.1Tripod2240Φ920257Φ920
6440×651000*19004"-8UN4"-8UN1148.8303.5Tripod1980Φ1010329Φ1010
6540×651000*19006"-FLG6"-FLG1139.9301.2Tripod2060Φ1010262Φ1010
6640×791000*22004"-8UN4"-8UN1338.3353.6Tripod2335Φ1010329Φ1010
6740×791000*22006"-FLG6"-FLG1328.4351.0Tripod2418Φ1010262Φ1010
6842×721096*24096"-FLG6"-FLG1431.2378.1Tripod2093Φ1070263Φ1080
6948×721200*23006"-FLG6"-FLG1786.2471.9Tripod2121Φ1200291Φ1220
7060×791500*24006"-FLG6"-FLG3086.3815.4Tripod2300Φ1500294Φ1512
7163×671600*17026"-FLG6"-FLG2629.8694.8Tripod1996Φ1620294Φ1604
7263×861600*26006"-FLG6"-FLG3424.5904.8Tripod2478Φ1620294Φ1604
7372×791800*26006"-FLG6"-FLG4819.41273.3Tripod2300Φ1800294Φ1856
7372×760.6MPa1800*26006"-FLG6"-FLG4819.41273.3Tripod2300Φ1800294Φ1856
7480×79 0.6MPa2000*20076"-FLG6"-FLG4819.41273.3Tripod2300Φ2000294Φ2036


FEATURE

Chengda Winder, Rohone, and Aowy FRP softner tanks quality assurance: burst test with 4 times of its design pressure, and 250000 times cycle test.

1.HBCDHM FRP tanks (844-1665) use 600 TEX fiberglass, not 1200TEX fiberglass, with higher safety factor.

2.The base of HBCDHM FRP tank is made from pure raw material not recycled material, With better appearance, stronger toughness, and more environmentally friendly.

3.Key additives are imported from the US.

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE


APPLICATION

HBCDHM FRP tanks are widely l used for water softening equipment in food processing plants, hospitals, laundries, manufacturing plants, office campuses and restaurants, condominiums, boiler feedwater, car washes, institutions, municipal, multimedia filters, carbon filters, iron filters, calcite filters and specialty media filters.

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE

Loading pictures:

1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE1.0MPA-150PSI FRP TANKS (30 to 63 INCH) FOR INDUSTRIAL USE


Any questions, welcome email us sales@chfrppressurevessel.com!
