Winder 8
Winder 8Winder 8

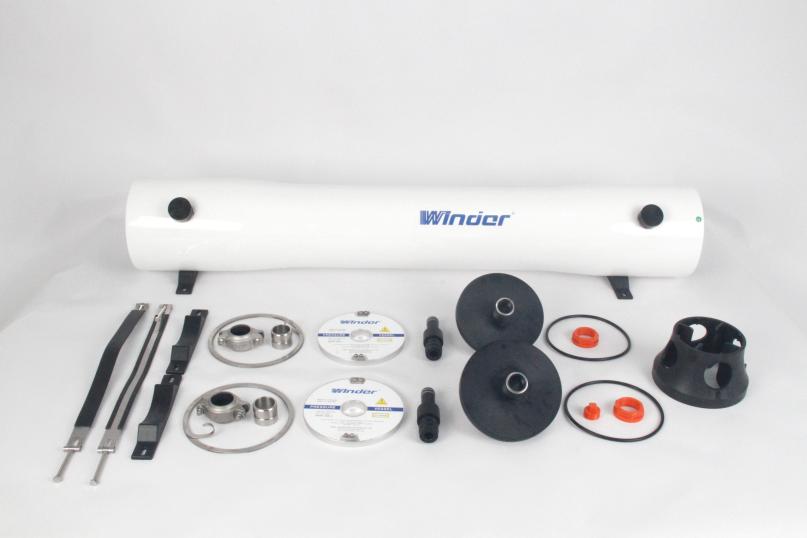

Winder 8" 600-1200PSI FRP MEMBRANE HOUSINGS-2012DESIGN

Winder® 2012 Design-Spring Locking Type

Similar structure with Codeline, Wavecyber FRP pressure vessels

Available in 600Psi,1000Psi,1200Psi operation pressure

Ports: side port, end port

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF


Datasheet Winder 2012 design W80S frp membrane housings--spring locking-HBCDHM.pdf


Differences and Comparisons of All Designs of FRP Membrane Housings by HBCDHM-Mary Hu.pdf


ordering chart 2020-Winder frp membrane housings-HBCDHM.pdf


Drawings:

Side Port:

W80S1000 Winder 2012 design spring ring locking-HBCDHM.pdf

W80S600 Winder 2012 design spring ring locking-HBCDHM.pdf

W80S1200 Winder 2012 design spring ring locking-HBCDHM.pdf


End Port:

W80E600 Winder 2012 design spring ring locking-HBCDHM.pdf

W80E1000 Winder 2012 design spring ring locking-HBCDHM.pdf

W80E1200 Winder 2012 design spring ring locking-HBCDHM.pdf


Inquire Now
Share:
Winder 8Winder 8

Winder 8" 600-1200PSI FRP MEMBRANE HOUSINGS-2012DESIGN

Similar structure with Codeline, Wavecyber FRP pressure vessels



Side/End Entry Design

Available in 600Psi,1000Psi,1200Psi operation pressure

Accommodates standard make 8" Membrane Element

Element length: 40" x (1-8)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ASME RP, CE, ISO9001, ISO14001, UL/NSF

Winder 8" 600-1200PSI FRP MEMBRANE HOUSINGS-2012DESIGN

Key Features:

Operating Temp Range: -10°C ---49°C

Internal permeate port not to exceed 125PSI(0.88MPa)

Operating pH Range: 3 – 11

Cleaning pH Range: 2 – 12 (less than 30 minutes)

Mirror inner wall and brightly surface.

Multi-ports option

White color is as standard. Customized colors are also available.

ASME Code stamp available upon request



Quality Assurance

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cycle test

— Burst test with 6 times of its operating pressure

— 100% QA test with 1.5x design hydraulic pressure.

ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61



Applications:

Winder FRP membrane housing pressure vessels are widely used for industrial waste water treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.

Winder 8" 600-1200PSI FRP MEMBRANE HOUSINGS-2012DESIGNWinder 8" 600-1200PSI FRP MEMBRANE HOUSINGS-2012DESIGN

Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
